Description
Product Description

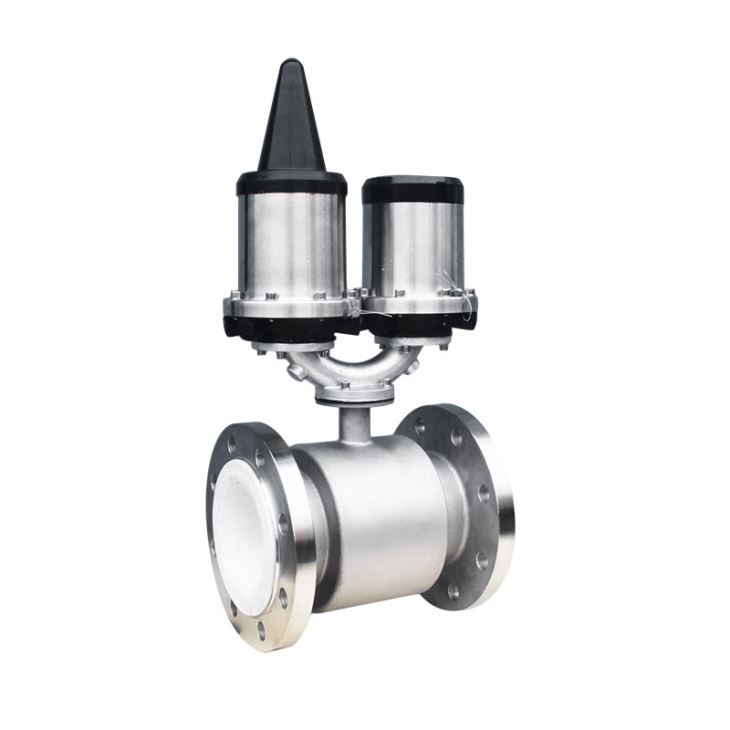

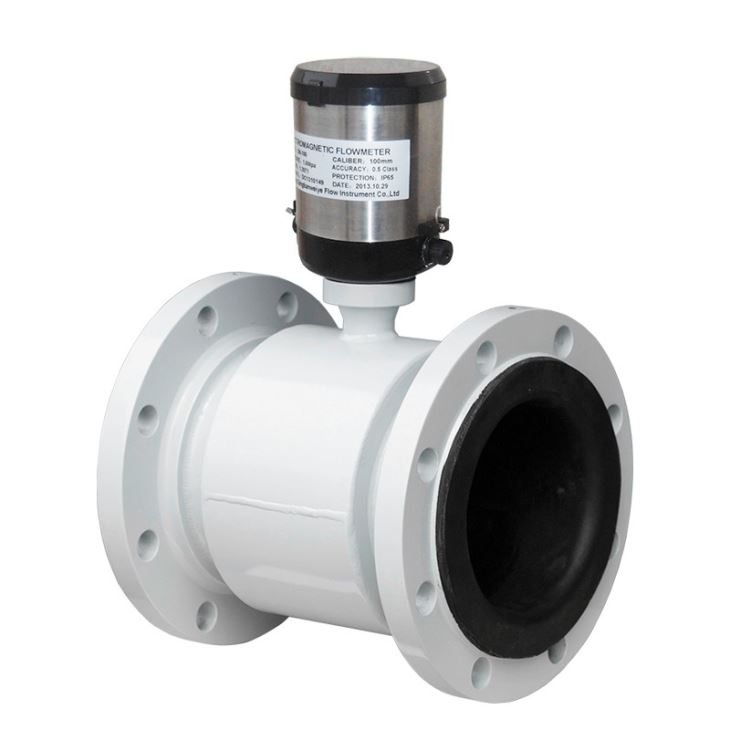

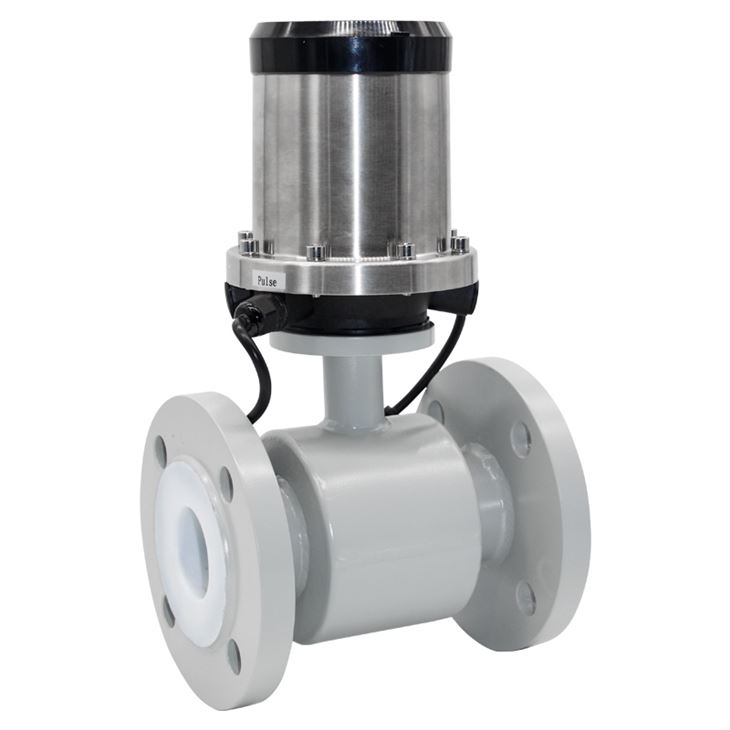

Battery Operated Flow Meter adopts lithium battery, which is capable of working 3~6 years consecutively. If a high-capacity battery is applied, the converter will have longer working time. The measurement of flow rate of the electromagnetic flow meter is based on Faraday’s law of electromagnetic induction. The battery powered electromagnetic flowmeter can be remotely communicated with the base station type radio communication network system. Date collection and management can also be realized through GPRS wireless network system. In addition, IP68 protection helps the flowmeter itself to be placed underground or underwater.
Advantages
The Battery Operated Flow Meter uses a specially designed sensor excitation system and a high-performance lithium battery power supply system. It uses all digital signal processing with the advantages of stable measurement, high measurement accuracy and strong anti-interference ability. It can optimize water supply and ensure accurate water trade measurement and settlement.
The equation is as below;
E=KBVD
K: Coefficient of the flow meter B: Pulsed magnetic flux density
V: Average velocity of the media D: Inner diameter of the measuring pipe
Please see the picture to the right.
Measuring Principle of Electromagnetic Flow meter
Service
♦ Perfect and high standard serving system in the overall course of the before, amid and after sale service.
♦ OEM & ODM, change & add new functions, change colors& shapes, etc will try our best to meet the needs of various clients.
♦ Training & trial run under the help of our professional engineers.
♦ 18 months guarantee for flow sensor.
Battery-powered Electromagnetic Flow Meter Application
♦ Remote monitoring of water supplies and distribution networks
♦ Water consumption and fiscal metering (custody transfer)
♦ Irrigation and abstraction
♦ Replacement of mechanical turbine meters
♦ Checking of pumps and water wells ♦ Custody transfer flow measurement in district heating networks
Advantages
♦ Power Supply: 3.6V lithium batteries, 24V or 220V
♦ Communication,RS485 and GPRS are available..
♦ Integrated verification,diagnostic function and empty pipe detection.
♦ Measure forward and reverse direction flows.
♦ Built-in reference electrodes,no need to connect ground ring.
♦ Dual frequency excitation and stable zero point.
♦ Precision coil winding technology,makes magnetic field more uniform.
♦ High protection grade,IP68,can be buried in ground
♦ High accuracy: ±0.5% of reading,±0.3% and ±0.2% optional,velocity >0.3 m/s. （Integral） (remote)
Installation Requirements
Installed at the lowest point and vertical upward direction. Don’t install at the highest point and vertical downward direction
Install exhaust valve at the downstream of flow meter when drop is more than 5m
Installed at the lowest point when used in open drain pipe
Need 10D of upstream and 5D of downstream
Dont’ install it at the entrance of pump, install it at the exit of pump
Installed at the rising direction
