Battery Powered Magnetic Flow Meter

Description

Product Description

Battery Powered Magnetic Flow Meter combines a flow sensor and battery-powered integrated electronic converter assembly to provide accurate flow measurement for pipeline flow monitoring applications. The measurement accuracy is not affected by changes in physical parameters such as temperature, pressure, viscosity, and density of the measured medium. It has a wide measurement range, and the flow measurement range can reach 0.05m/s~10m/s. Besides, the display adopts LCD large-screen liquid crystal display, which can display multiple flow parameters, such as instantaneous flow, flow (pipe pressure), forward and reverse accumulation and alarm prompts.

Advantages

Battery Powered Magnetic Flow Meter is designed specifically for the water industry to meet the city’s water supply to ensure accurate water fee calculation. It has a data storage function, can save 1000 sets of flow data, and can set the data storage interval and data query arbitrarily. It is widely used in the field without power supply sites, such as: urban water supply, sewage treatment, water conservancy projects, water administration and water resources and other industries.

Battery Powered Electromagnetic Flow Meter Type

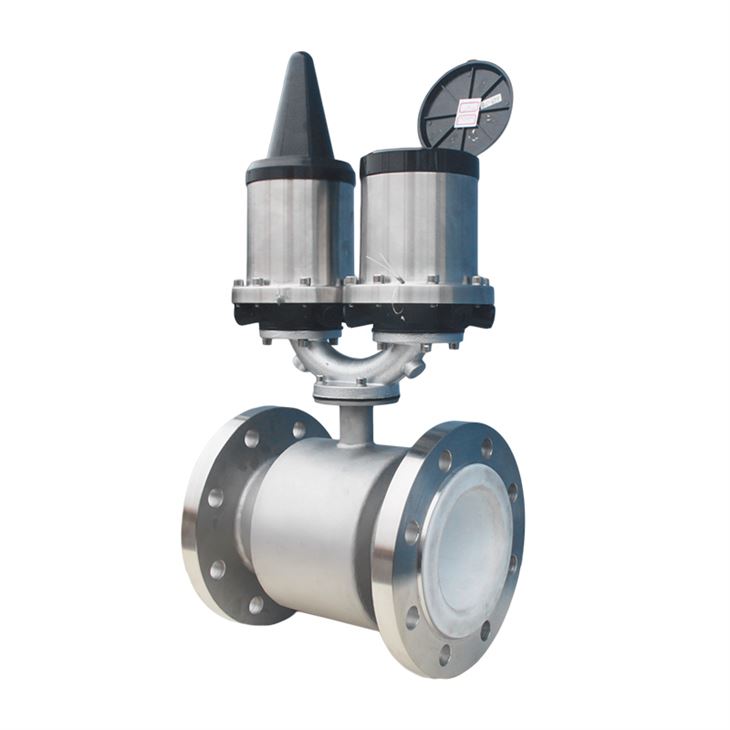

Compact Battery Powered Electromagnetic

Flow Meter with GPRS

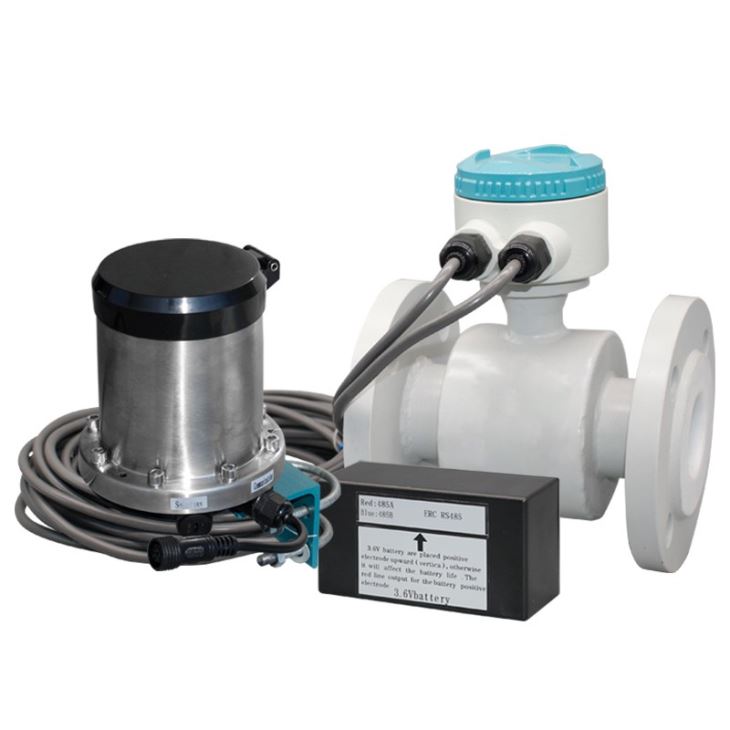

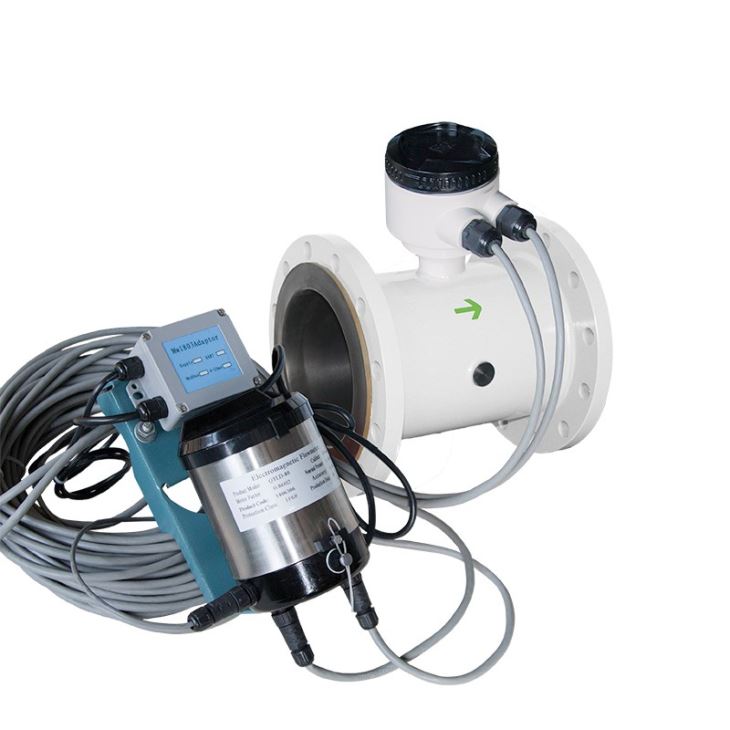

Remote Battery Powered Electromagnetic

Flow Meter

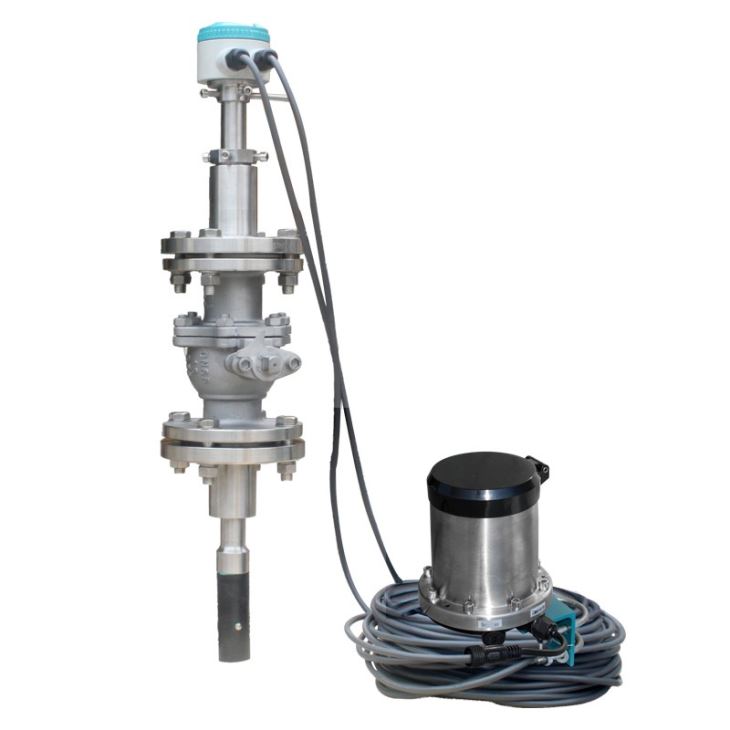

Remote Insertion Battery Powered

Thread Ball Valve Electromagnetic Flow Meter

Compact Insertion Battery Powered

Flange Ball Valve Electromagnetic Flow Meter

Battery Service Life Illustration

Battery working life– Flow Sensor Size & Life ( 1/15Hz)

Battery working life– Flow Sensor Size & Life ( 1/30Hz)

Structure

Battery-powered Magnetic Flowmeter New Features

1. The battery-powered magnetic flowmeter is specially designed for the water industry to meet the urban water supply and ensure accurate water fee calculations. It is widely used in urban water supply (cold water), urban heating (hot water), sewage treatment, water conservancy engineering and other industries. No interference from water quality, no entanglement and blockage, almost no pressure loss, reliable and continuous work for a long time. Especially suitable for large flow heating.

2. Adopt specially designed sensor excitation system and intelligent system, and adopt 16-bit embedded ultra-micro power processor, full digital signal processing, stable operation, high measurement accuracy, strong anti-interference ability, etc. Automatic two-way flow measurement, on-site instantaneous flow, forward and reverse cumulative total display, self-diagnosis fault alarm, GSM/GPRS data wireless remote transmission and other functions, users can achieve wireless remote flow data through a powerful GSM/GPRS remote management software system Transmission, storage and other functions. And can realize the automatic switching of 3.6V/12V or 220V multi-channel power supply.

3. Magnetic flowmeter is a very good choice for large water users to measure and upgrade

Water is a precious and non-renewable resource. Today, when advocating energy saving and consumption reduction, it needs to be effectively measured and controlled. Accurate and fair measurement, effective supervision and control are the basic means of saving water and reducing waste. Water supply enterprises implement accurate and fair trade measurement, realize the measurement and monitoring of large users, and implement regional measurement methods to reduce leakage, which is a water supply enterprise’s economic improvement. A very direct method of benefit. The battery-powered electromagnetic flowmeter provides a simple and very direct means to achieve the above objectives.
