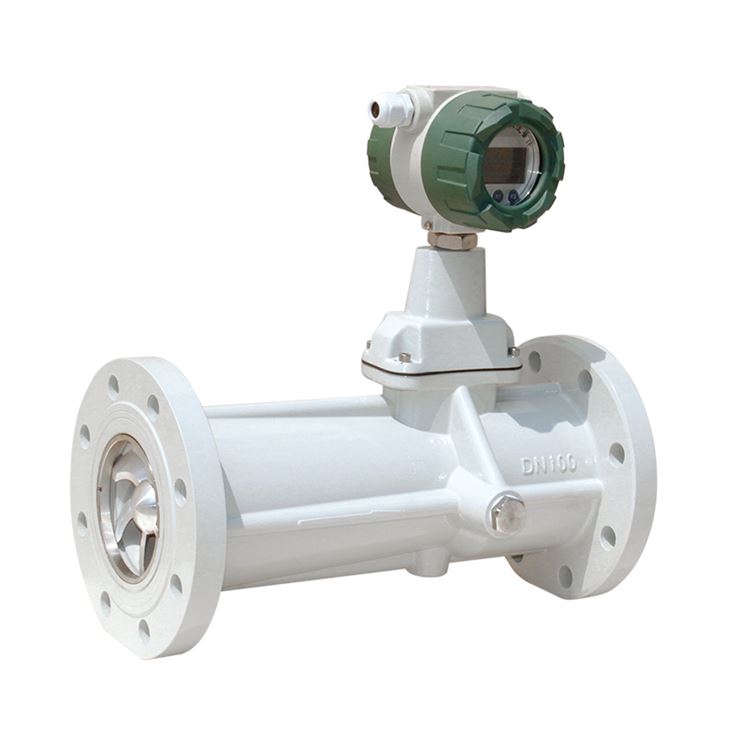

Intelligent Vortex Flow Meter

Description

Product Description

The Intelligent Vortex Flow Meter is a new gas flowmeter designed and developed by our company using the most advanced technology. It is your all-in-one solution, which can be used to measure the volume and mass flow of steam and gas. It is easy to use with digital systems such as computers, and is a relatively advanced and ideal measuring instrument. The precession vortex flowmeter has temperature and pressure compensation functions, which will make flow measurement more accurate. In addition, it has no movable mechanical parts, so it has high reliability and low maintenance.

Advantages

The Intelligent Vortex Flow Meter is characterized by small pressure loss, large measuring range, and high accuracy. It is hardly affected by fluid density, pressure, temperature, viscosity and other parameters when measuring volume flow under working conditions. It provides solutions for metering needs in oil and gas industry, especially in industries such as natural gas metering, oil and gas, coal gas, and petrochemical industries.

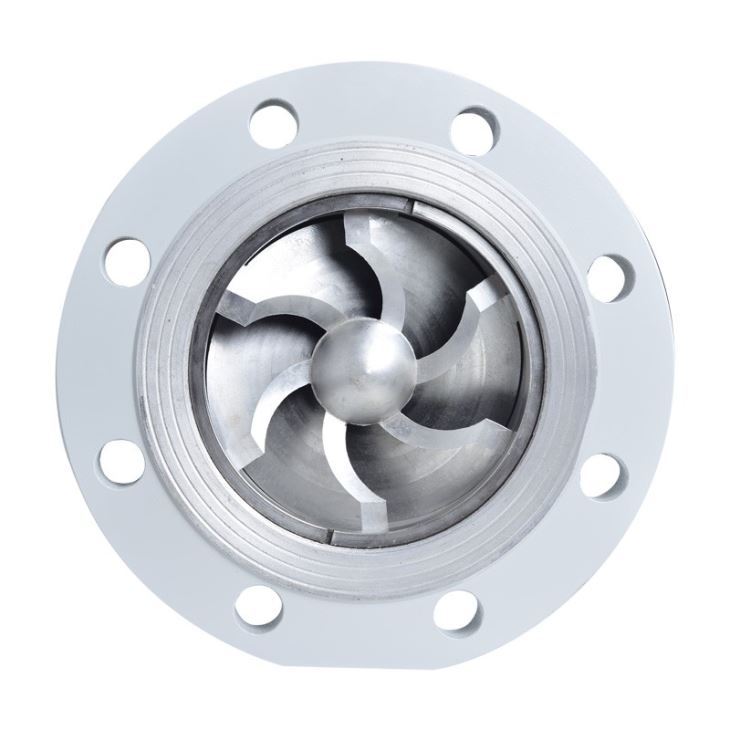

Precession Vortex Flow Meter Structure

Five Key Points

1. Suitable model selection: Need to know min flow, normal flow, max flow of the tested medium, also the process pressure,temperature to choose suitable flow meter model then guarantee accuracy and safety.

2. Each set well calibrated before leave factory

3. Make sure well installation: Guarantee front & rear straight pipe line adequate & smooth, keep away from high temperature environment, avoid vibration & interference.

4. Managements: Keep maintenance & record,carry out calibration, flow converter data record at regular interval, etc. To guarantee the good accuracy.

5. Internal maintenance: natural gas always has impurites, sensor meed to be cleaned and check performance regularly, and keep record.

Precession Vortex Flow Meter Installation

● Keep away from the inlet & outlet flanges to avoid flow meter inner spare parts breakdown.

● Clean pipe carefully before installation,avoid any sundries inside the pipe.

● Installation position should avoid strong mechanical vibration, thermal radiation influence and strong electromagnetic field interference.

● Flow meter should avoid the area of flow cutoff frequency or with pressure pulsation or intensive pulsating flow, etc.

● Intensive sunlight and rain immerse will shorten the service life, so flow meter should install with the shelter while in outdoor.

● Keep the same flow direction as indicated in flow meter body.

● To avoid sealing fin and grease enter pipe cavity, flow meter and pipeline shall be installed coaxially.

● While apply with 24VDC power supply, reliable grounding is must, it is forbidden to have common ground with high voltage system, the welding system grounding wire is not allowed to connect with flow meter.

LCD Display & Wiring Terminal
