Level Transmitter

Description

Product introduction

Ultrasonic level meter (for bulk material level or liquid level)is a level measuring device with the features of non-contact, high reliability, cost-effective, easy to be installed and maintained.

The meter uses the time t (and the velocity of sound) to calculate the distance D between the sensor membrane and the product surface

The sensor of the meter pulses in the direction of the product surface. There, they are reflected back and received by the sensor.The meter measures the time t between pulse transmission and reception.:

D = c *t/2. As the device knows the empty distance H from a user entry, it can calculate the

Level as follows:L=H–D.

Features

● Integrated design, installed conveniently;

● Protected in the excessive voltage and current;

● Protected in the thunder and lightning;

● The big show window of LCD is easy to debug and observe;

● Over-voltage over-current protection, lightning protection;

● Advanced terminal to ensure that wiring never loose;

● Intellectual signal treatment technology, guarantee meets various kinds of operating occasion;

● All plastic probe, adapt to bad environment ,such as acid and alkali liquid;

Advantage:

1. Diagonally downward1structure design

To prevent rainwater into the interior, dam-age tothe internal circuit.

ABS connector material, impact resistance, anti-aging, high and low temperature, the useof5 years without deformation.

2. IP65 protection

Fully sealed protection with up to IP68 pro-tection for high and low temperature environ-ments.

It has the function of full-scale overflow prompt and any digital shifting of the ful-scalestarting point and end point

3. Double protection
Double protection design, can be istalledinthe slit will be reduced to milimeters.
With 4mA, 20mA digital fine-tuning function,making on-site installation, debugging andmaintenance very accurate and convenient.

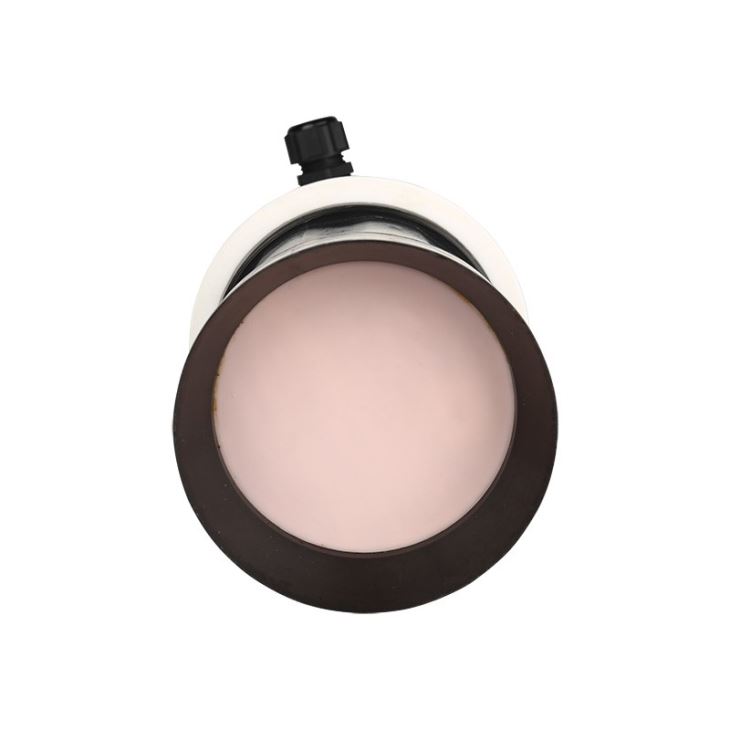

4. High-quality probe

Fully enclosed probe, physical seal, andeffectiveprotection of the intermal circuit.Equipped with the thirdgeneration of im-proved transducer technology, the blindspotof the product is greatly reduced with a resolu-tionof up to 3MM.
