Description

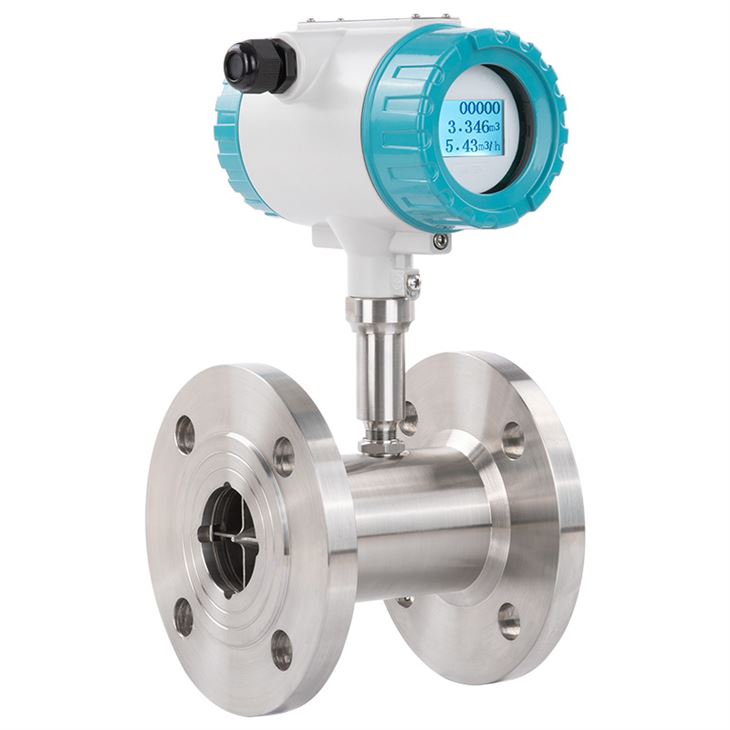

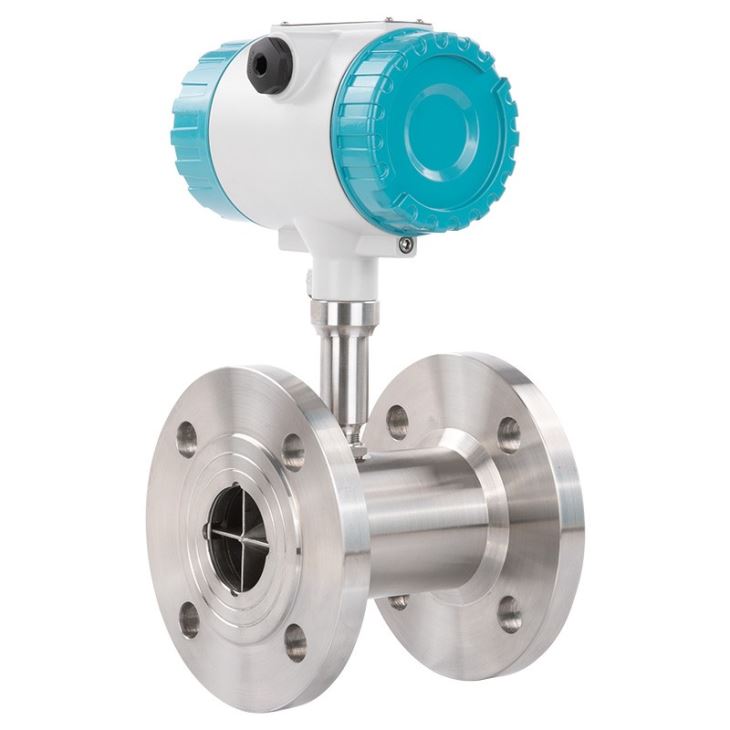

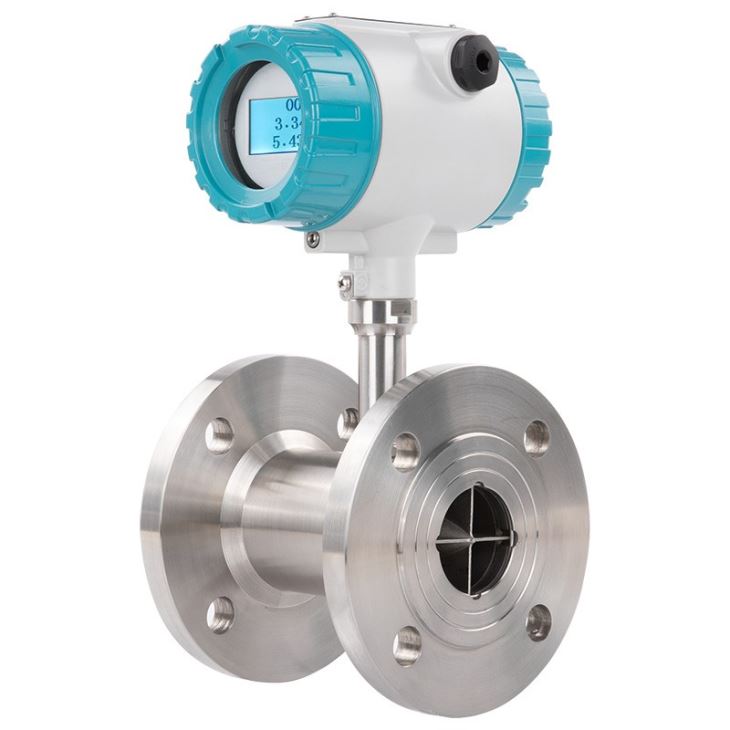

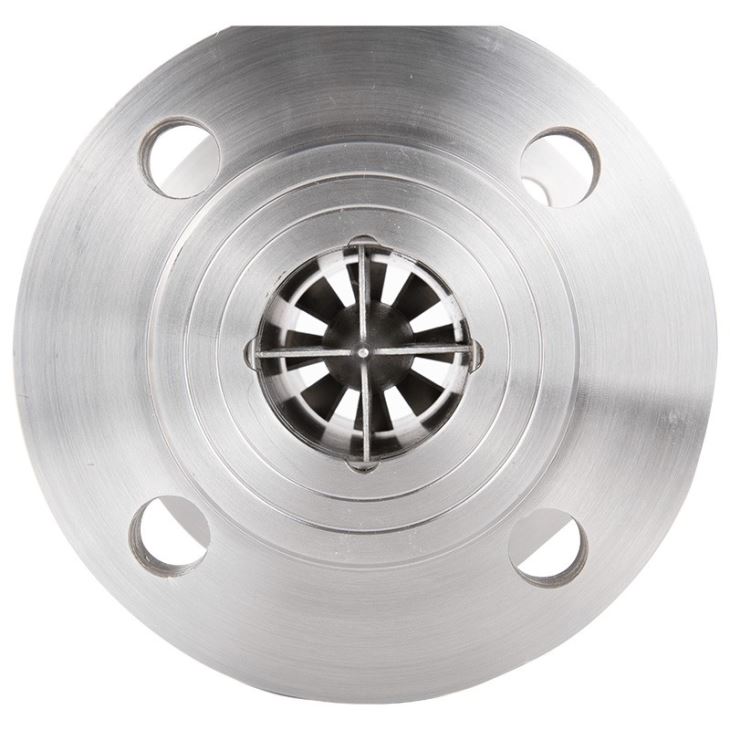

Liquid turbine flow meter is a kind of clean liquid precision flow measurement instrument and volume sensing device and has a simple working principle. It is suitable to many kinds of clean liquids.It is applicable for use in closed pipes to measure flow of liquid which will not erode stainless steel (1Cr18Ni9Ti), 2Cr13, Al2O3 and hard alloy and is free of impurities such as fiber and granules.The sensor is of hard alloy bearing thrust type, which may guarantee the precision and improve the wear resistance performance as well. If this product is used in association with display instruments with special functions, it can be used for purpose of automatic definite batch control and alarming in case of excessive amount.
Outstanding features
•Low cost.
•Outstanding accuracy.
•Linearity +/-.5%
•Repeatability +/-.1%
•Measurement of non-conductive liquids.
•Capability of heating measuring device. •Suitable for very low flow rates.
Depending on different application, there are several types of turbine flow meters to choose from. And after understanding the application several factors come into effect when choosing a flow meter, such as:
•Fluid Type
•Viscosity
•Connection
•Pipe Sizing
•Process Temperature (min & max)
•Flow Range (min & max)
•Pressure Range (min & max)
•Accuracy Range
•Specific Application
Installation Notice:
The turbine flowmeter / Turbine flow sensor has various connections types for the user’s convenience, such as thread, flange, wafer, tri-clamp, etc. The flow direction could be left-right, right-left, bottom-top, etc, if meet the below straight pipeline length:
