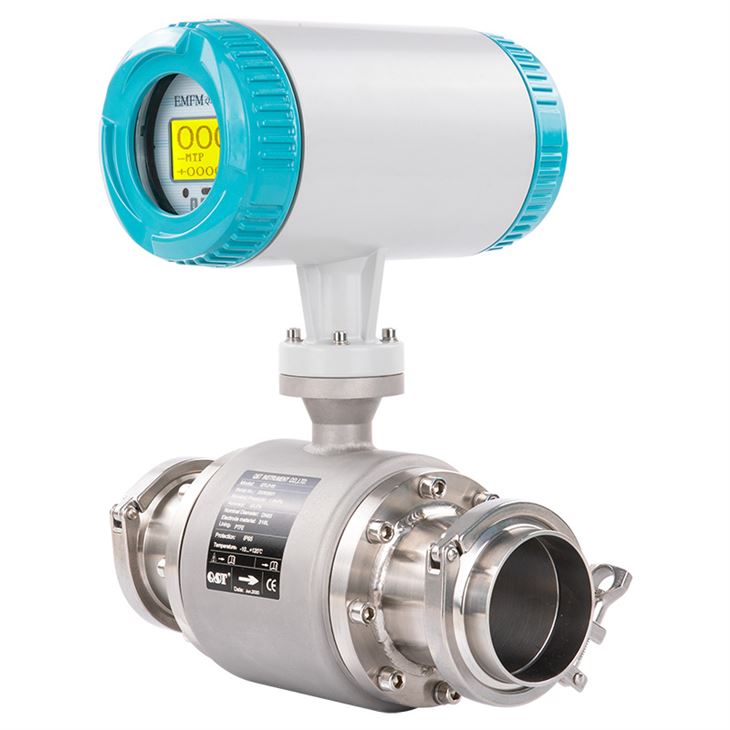

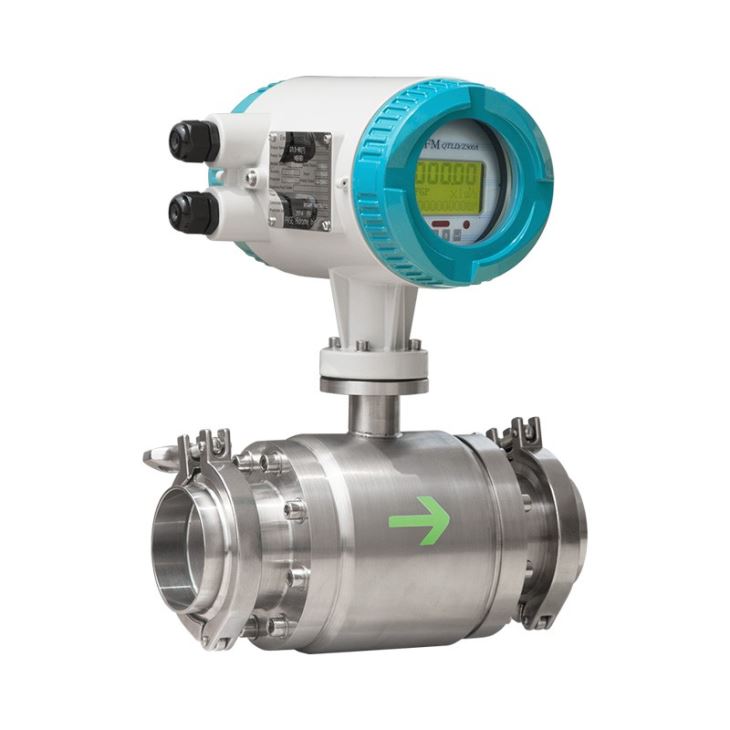

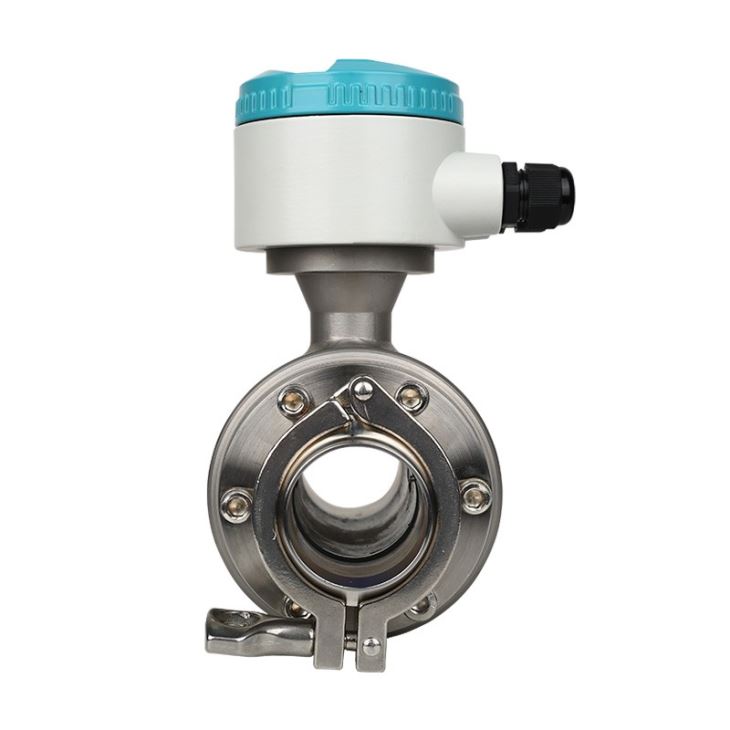

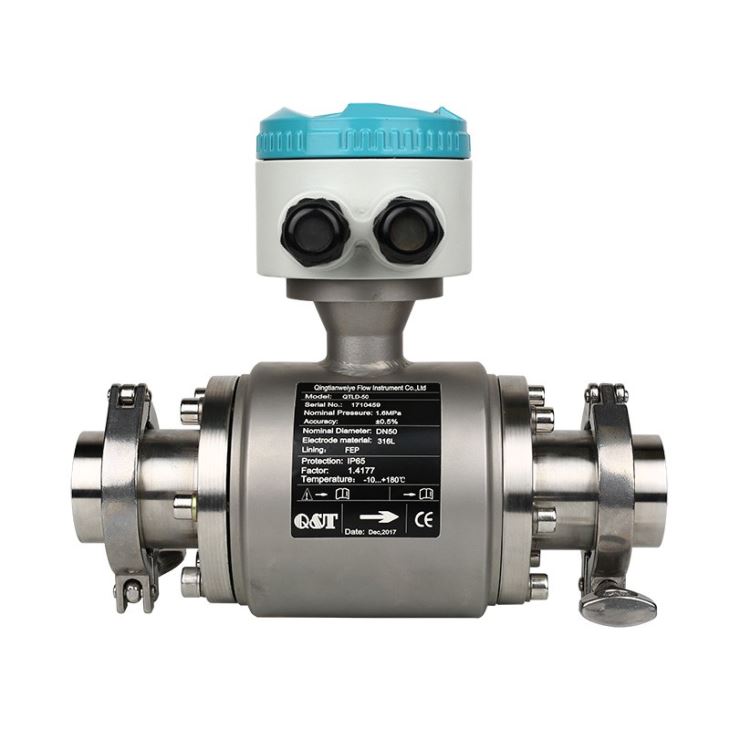

Magnetic Water Flow Meter

1.Accuracy: 0.5%
2.Material: SS304/SS316
3.Output: 4-20mA/pulse/frequency/alarm
4.Power: 220V AC/24V DC
5.Diameter: DN25-DN200
6.Liner: FEP/PFA

Category: Electromagnetic Flow Meter

ENQUIRY!

Description

Magnetic water flow meter is a kind of conductive liquids flow measurement device. It has good accuracy that can up to 0.2%. Its connection is easy to install and dismantle and it can withstand high temperature disinfection, so it was mainly used in food industries such as milk, juice, beer, etc. Tri-clamp type magnetic flow meter also means sanitary type magnetic flow meter. We have many clamp standard for you, like SMS, 3A and so on.

Magnetic water flow meter consists of sensor and converter in two parts. It is based on Faraday’s law of electromagnetic induction. It can measure the conductance greater than 20μs/cm volume of conductive liquids flow.

We have manufactured magnetic water flow meter more than 15 years, and we have our own workshops, R&D team and after-sale team.

Multiple payment methods can be received, delivery time is within 5 working days.(For big quantity order, please discuss with us.)

For more information please contact us at anytime, we offer:

1. 24 Hours Online Service.

2. Inquiry will be replied within 2 hours.

3. All-the-way tracking service offered from placing order to delivery.

4. Free training for operation, debugging and daily maintenance.

5. We can provide professional guide installation.

6. Two years warranty and all-round after-sales service.

7. Customized design and flow chart are available for our clients.

8. Independent R&D team and strict & scientific management system

Technical Parameters


Size	DN3-DN3000mm
Nominal Pressure	0.6-1.6Mpa(2.5Mpa/4.0Mpa/6.4Mpa…Max 42Mpa)
Accuracy	+/-0.5%(Standard) +/-0.3% or +/-0.2%(Optional)
Liner	PTFE, Neoprene, Hard Rubber, EPDM, FEP, Polyurethane, PFA
Electrode	SUS316L, Hastelloy B, Hastelloy C Titanium, Tantalum, Platinium-iridium
Structure Type	Integral type, remote type, submersible type, ex-proof type
Medium Temperature	-20~+60 degC(Integral type)
Medium Temperature	Remote type(Neoprene,Hard Rubber,Polyurethane,EPDM) -10~+80degC Remote type(PTFE/PFA/FEP) -10~+160degC
Ambient Temperature	-20~+60deg C
Ambient Humidity	5-100%RH(relative humidity)
Measuring Range	Max 15m/s
Conductivity	>5us/cm
Protection Class	IP65(Standard); IP68(Optional for remote type)
Process Connection	Flange (Standard), Wafer, Thread, Tri-clamp etc (Optional)

Output Signal	4-20mA/Pulse
Communication	RS485(Standard), HART(Optional)
Power Supply	AC220V (can be used for AC85-250V) DC24V (can be used for DC20-36V) DC12V (optional), Battery Powered 3.6V (optional)
Power Consumption	<20W
Alarm	Upper Limit Alarm / Lower Limit Alarm
Self-diagnosis	Empty Pipe Alarm, Exciting Alarm
Explosion Proof	ATEX

Electrode Material	Application
SUS316L	Applicable to industrial/municipal water, wastewater and low corrosive mediums. Widely used in petroleum, chemical industries.
Hastelloy B	Strong resistance to hydrochloric acids below the boiling point. Resist against oxidable acids, alkali and non-oxidable salts. For instance, vitriol, phosphate, hydrofluoric acids, and organic acids
Hastelloy C	Exceptional resistance to strong solutions of oxidizing salts and acids. For example, Fe+++, Cu++, Nitric acids, mixed acids
Titanium	Titanium can withstand corrosive mediums such as seawater, chloride salt solutions, hypochlorite salts, oxidable acids(including fuming nitric acids), organic acids, and alkali. Not resistant to high purity reducing acids such as sulphuric acids, hydrochloric acids.
Tantalum	Highly resistant to corrosive mediums. Applicable to all chemical mediums except Hydrofluoric Acids, Oleum and Alkali.
Platinum-iridium	Applicable to all chemical mediums except for Ammonium salts and Fortis.
