Description
Product Description

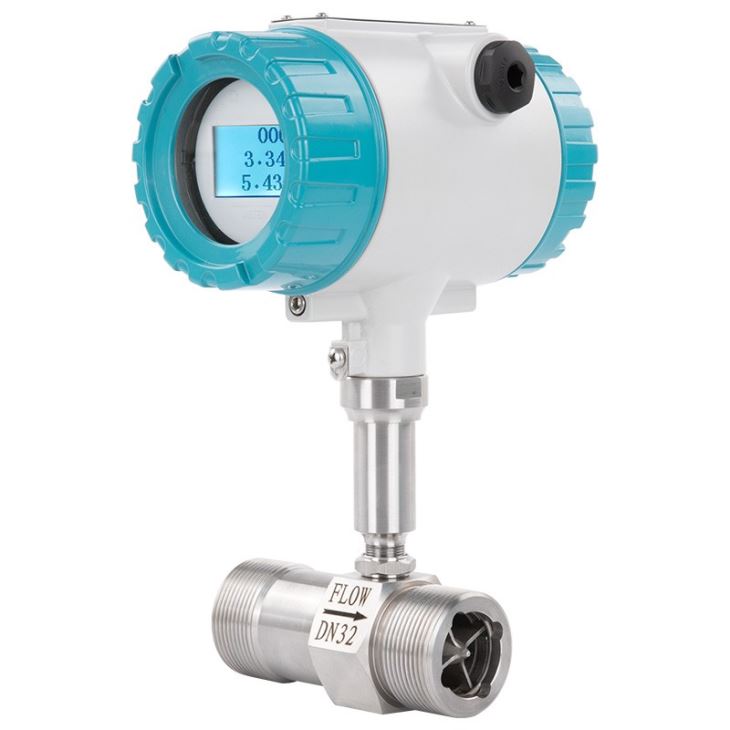

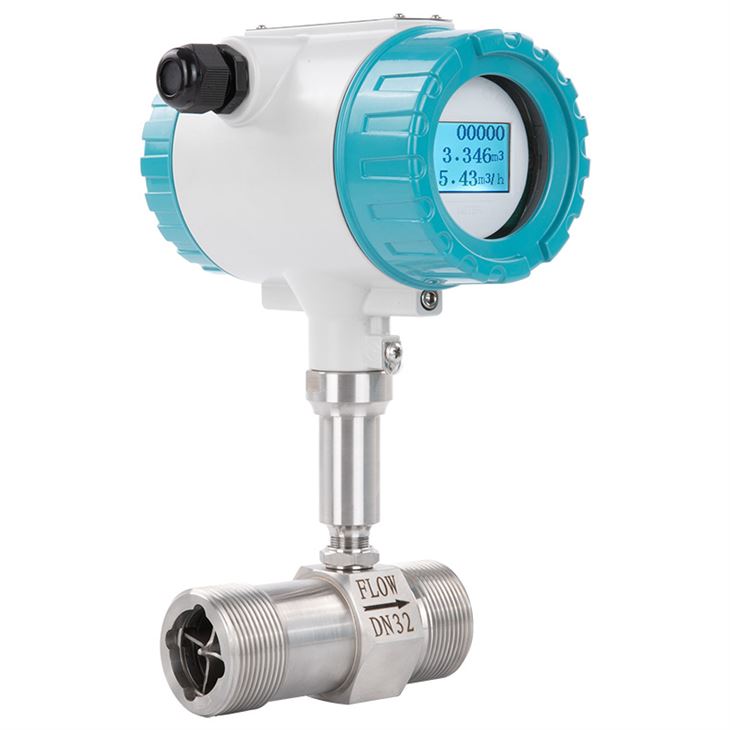

Oil Turbine Flow Meter is a new generation of high-precision, high-reliability precision metering instrument, with excellent low and high pressure metering performance, multiple signal output methods and low sensitivity to fluid disturbances. Oil Turbine Flow Meter can be used for high-pressure water injection or oil volume measurement. Liquid flows through the turbine housing, causing the inner rotor to rotate. As the rotor rotates, an electrical signal is generated in the pickup coil. The signal is converted to engineering units (liters, cubic meters, gallons, etc.) on the applicable local display.
Advantages
Oil Turbine Flow Meter have obvious advantages such as compact structure, intuitive and clear readings, high reliability, no interference from external power sources, lightning resistance, and low cost. The optional accessory module can be used to output signals to other devices. There are multiple outputs for you to choose, such as 4-20mA, pulse, RS485 or HART. It is widely used in the following measurement objects: petroleum, organic liquids, inorganic liquids, liquefied gas, natural gas, coal gas and cryogenic fluids.
Features
•Low cost.
•Outstanding accuracy.
•Linearity +/-.5%
•Repeatability +/-.1%
•Measurement of non-conductive liquids.
•Capability of heating measuring device.
•Suitable for very low flow rates.
